Medical Sterilizer PCB

Medical sterilizer PCBs control heating, temperature, UV sterilization, power, and system monitoring. They require reliable power handling, heat resistance, and stable performance. MedPCB manufactures and assembles medical-grade PCBs for sterilizers and disinfection equipment.

✓ High-Tg, Heavy Copper & Thermal Management PCB Options
✓ SMT, THT & Mixed-Technology PCBA
✓ Component Sourcing, Inspection & Functional Testing
✓ ISO 13485 Manufacturing & IPC Class 2/3 Support

Get Instant Quote

Certifications

introduction

What is Medical Sterilizer PCB?

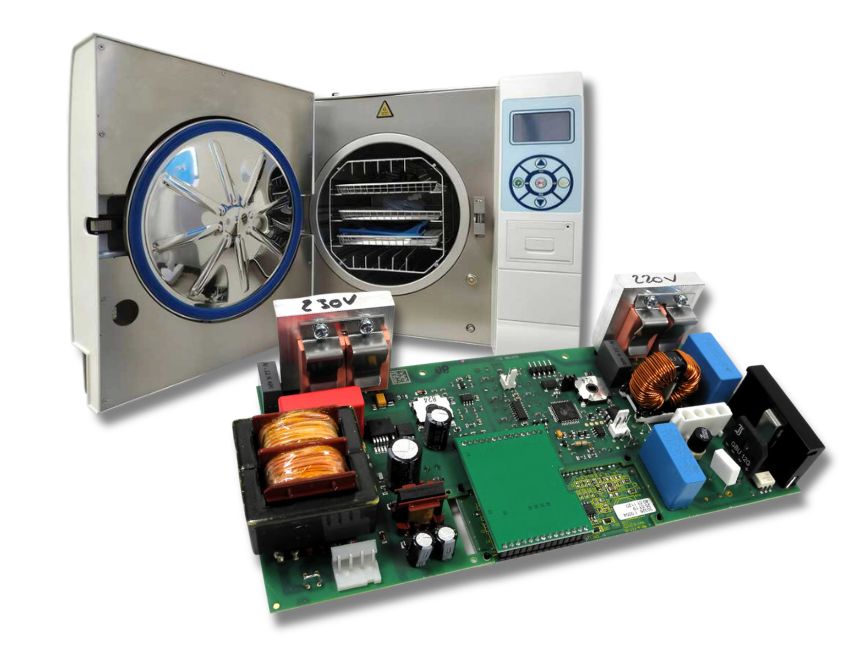

A medical sterilizer PCB is a specialized circuit board used inside medical sterilization and disinfection equipment. It controls key functions such as heating, pressure monitoring, UV sterilization, timing, power management, and system control.

Sterilizer control electronics can combine sensor interfaces, power circuits, heating control, pumps, valves, displays, and communication functions. Depending on the equipment design, the PCB may need to handle higher current, localized heat, environmental exposure, or mixed analog and power circuits.

MedPCB manufactures and assembles medical-grade PCBs for autoclaves, UV sterilizers, and automated instrument reprocessors. We support multilayer, high-Tg, heavy copper, metal core, and aluminum PCB manufacturing, with SMT, THT, and mixed-technology assembly. Our manufacturing supports prototypes, low-volume production, and volume manufacturing.

Get Instant Quote

Products

Features of Medical Sterilizer PCB

High-Temperature Resistance

Sterilizer electronics may operate near heaters or other heat-generating sections and can experience repeated thermal cycles. High-Tg PCB materials and suitable board constructions provide better thermal stability for applications with elevated temperature requirements.

High-Current & High-Power Capability

Moisture & Environmental Resistance

Thermal Management

Why Choose Us

Why Choose MedPCB for Medical Sterilizer PCB Manufacturing?

ISO 13485 PCB & PCBA Manufacturing

MedPCB manufactures medical sterilizer PCBs and PCBAs under an ISO 13485 certified quality management system. Our process controls support material traceability, consistent production, and quality inspection from prototype builds to volume production.
High-Tg, Heavy Copper, Metal Core & Aluminum PCB Manufacturing

We manufacture high-Tg, heavy copper, metal core, and aluminum PCBs for medical sterilizer applications. These PCB options support high-temperature operation, higher current loads, and improved heat dissipation for power and heating circuits.
High-Power & Mixed-Technology Assembly

Medical sterilizer PCBAs may combine power devices, controllers, sensors, relays, connectors, and other components on the same board. We support mixed-technology assembly with SMT and through-hole components for power, heating, sensing, and control circuits.
Turnkey PCB Assembly & Component Sourcing

Our turnkey PCBA service covers component sourcing, PCB fabrication, assembly, inspection, and testing. We support complete, partial, consigned, and kitted assembly based on project requirements. Components are sourced from approved suppliers with traceability throughout production.
Free DFM / DFA Check

Our engineering team reviews the PCB layout, copper thickness, thermal vias, component placement, spacing, and assembly requirements before production. This helps identify manufacturing issues early and supports reliable sterilizer PCB production.

Specs

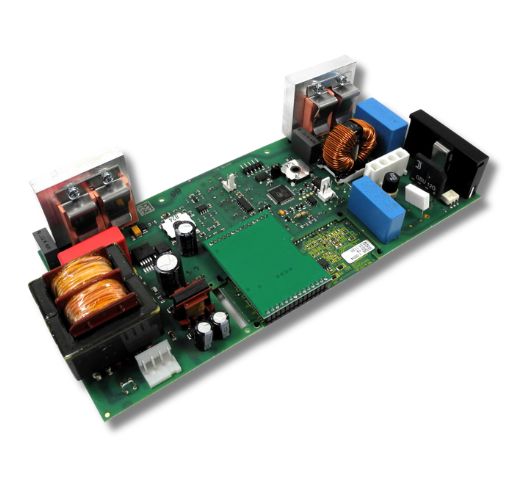

Technical Specifications

Technical Parameter	Manufacturing Capability
Order Quantity	≥ 1 PCS, No MOQ
Board Size	Standard: up to 500 × 600 mm; Advanced: up to 1100 × 500 mm
Layer Count	Rigid PCB: 1–40 layers Flex PCB: 1–8 layers Rigid-Flex PCB: Standard: 2–12 layers (up to 10 flex layers); Advanced: 13–20 layers (up to 18 flex layers)
PCB Types	Rigid, Flex, Rigid-Flex, HDI, Heavy Copper, Metal Core, and Aluminum PCB
Assembly Technologies	Surface Mount (SMT), Through-Hole (THT/DIP), and Mixed-Technology
Component Sourcing	Full Turnkey, Partial Turnkey, or Consigned; access to 300,000+ genuine traceable components
Component Range	UV LED for UV sterilization systems, 01005 packages to 0.2 mm fine-pitch BGA
Placement Accuracy	±0.035 mm via automated component placement
Board Thickness	0.2–10.0 mm; Standard: 0.2–3.2 mm; Advanced: 3.4–10.0 mm
Min. Trace Width / Spacing	Internal: 3/3 mil (0.075 mm); External: 3/3 mil advanced, 3.5/4 mil standard
Surface Finish	ENIG, ENEPIG, Lead-Free HASL, OSP, Immersion Silver, Immersion Tin, Soft/Hard Gold
Impedance Tolerance	±5 Ω for <50 Ω; ±10% for ≥50 Ω
Materials	High-Tg FR-4, Aluminum, Copper Core, Polyimide, Rogers, Megtron 6, and other qualified PCB materials
Conformal Coating	Available for protection against moisture and environmental exposure

Get Instant Quote

Capabillities

Medical Sterilizer PCB Manufacturing and Assembly at MedPCB

Get Instant Quote

Step 1: Engineering Review & DFM/DFA

We manufacture your PCBs according to the approved Gerber files, stackup, materials, copper requirements, and fabrication specifications. At the same time, BOM components are sourced through qualified supply channels. We can suggest alternative parts for obsolete, out-of-stock or high-cost components for your review and approval prior to purchasing.

Step 2: PCB Fabrication & Component Sourcing

Step 3: IQC Incoming Quality Inspection

Step 4: SMT & THT Assembly

Step 5: Inspection, Testing & Traceability

Quality Control

Challenges in Medical Sterilizer PCB Manufacturing and Assembly

Thermal Stress & High-Power Circuits

Challenge: Medical sterilizer PCBAs may operate near heating elements, power devices, and other heat-generating sections. Repeated heating and cooling cycles can place thermal stress on the PCB, solder joints, and components. High-current circuits can also create localized heat.

Our Solution: MedPCB supports high-Tg, heavy copper, metal core, and aluminum PCB constructions for sterilizer applications. Thermal vias, suitable copper thickness, and proper component placement help manage heat. Components are selected according to the required temperature and power conditions on customer’s BOM.
Chemical & Moisture Resistance

Challenge: Sterilization systems may use steam, hydrogen peroxide, EtO, or other chemical processes. Moisture and chemical exposure can affect solder joints, copper surfaces, connectors, and other materials.

Our Solution: MedPCB controls PCB and PCBA cleanliness according to the approved manufacturing requirements. Conformal coating and selective potting are also available when additional moisture or environmental protection is specified for the assembly.
Precision Sensor & Control Circuit Assembly

Challenge: Sterilizer PCBAs can include temperature, pressure, flow, and other sensor-interface circuits together with control ICs and power components. Dense layouts and mixed component packages increase the need for consistent placement and soldering.

Our Solution: Our automated placement supports component positioning accuracy up to ±0.035 mm (Cpk ≥1.0). MedPCB also supports miniature components, fine-pitch ICs, QFN, BGA, and mixed SMT/THT assembly according to project requirements.
High-Current & Mixed-Technology Assembly

Challenge: Sterilizer PCBAs may combine high-current power circuits with low-voltage control and sensing circuits. The assembly may also require both SMT and through-hole components, creating different soldering and thermal requirements on the same board.

Our Solution: MedPCB supports precise SMT, THT, and mixed-technology assembly for medical sterilizer PCBAs. We also manufacture and assemble high-current and high-power PCBs and PCBAs based on your board design, power requirements, component selection, and approved manufacturing specifications.

Quality Control

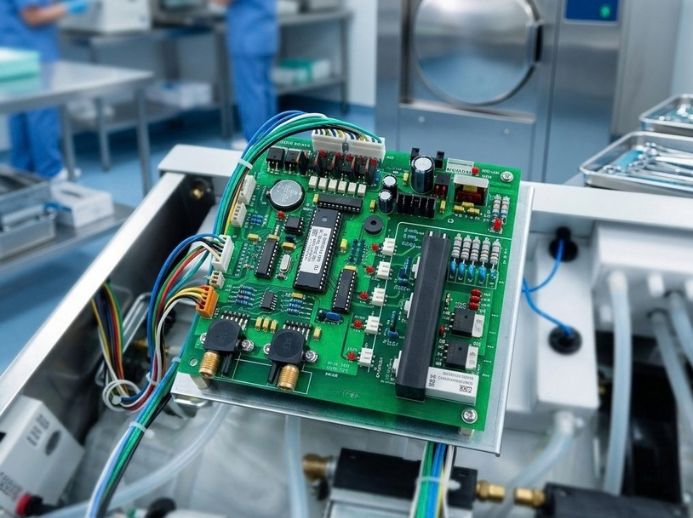

Quality Control for Medical Sterilizer PCB & PCBA in MedPCB

PCB Inspection & Electrical Testing

We inspect medical sterilization PCBs during fabrication using AOI, dimensional checks, and electrical testing. Copper thickness and other critical fabrication parameters are verified according to the approved specifications.

PCBA Process Inspection

We check component placement, solder joints, component placement, and overall assembly quality throughout production. 3D SPI checks solder paste volume and placement before component mounting. AOI verifies component position, polarity, and visible soldering defects. X-ray inspection checks hidden solder connections on BGAs, QFNs, and other high-density components.

Functional Testing & Traceability

We perform functional tests based on your approved test requirements. Testing can cover power circuits, heating controls, temperature and pressure sensor interfaces, communication interfaces, and other sterilizer functions. Production and component records are maintained to support lot traceability and quality control.

Need reliable Medical Sterilization PCB & PCBA? Send your Gerber files, BOM, and assembly files to sales@medicalpcb.com for a free DFM/DFA review.

Get Instant Quote

industries

Medical Sterilization PCB Industry Application

More Industries

Case Study

Medical Sterilization PCB Case Studies

Steam Sterilizer Control PCBA

The customer required a 4-layer high-Tg FR-4 PCB with 2 oz copper for their steam sterilizer controller to support heater, relay, sensor and valve circuits. We manufactured the board to their specifications. High-Tg material offers stable performance under frequent high-temperature cycles. Mixed SMT and through-hole assembly integrates all control functions on one board to meet their design requirements.
Low-Temperature Chemical & Gas Sterilizer PCBA

The customer required a compact multilayer PCB for gas injection, valve control, pumps, sensors, and process monitoring. MedPCB manufactured the multilayer PCB and completed fine-pitch SMT and mixed-technology assembly according to the approved design. We applied selective conformal coating to specified PCBA areas for extra environmental protection.
Dry-Heat Sterilizer Control PCBA

The customer required a high-temperature PCB for controlling heating elements, temperature sensors, fans, relays, and timing circuits. MedPCB manufactured a high-Tg FR-4 PCB with heavier copper in designated power areas according to the customer specifications. Mixed SMT and through-hole assembly was used for control ICs, power devices, relays, and connectors.
Water & Surface Fluid Sterilization PCBA

The customer required a compact 4-layer PCB to control pumps, flow sensors, valves, and fluid delivery circuits. MedPCB manufactured the board with sensor circuits and controlled component placement. Fine-pitch SMT assembly supports the compact layout, while conformal coating was applied to selected areas where additional moisture protection was required.

Get Instant Quote

Faqs

Frequently Asked Questions

Our Medical Sterilizer PCB FAQ addresses essential questions regarding your manufacturing requirements. We cover our capabilities for high-reliability single-sided, double-sided, and heavy-copper multilayer circuits, thermal-resistant material selection, power management and high-temperature durability for intensive thermal and pressure sterilization cycles, strict ISO 13485 quality standards, and seamless scalability from quick-turn prototypes to mass production. For every medical sterilizer PCB project, we guarantee robust fabrication tailored for critical, high-power, and harsh-environment healthcare applications.

Get Instant Quote

1. What Manufacturing Requirements Apply to Medical Sterilizer PCBs?

MedPCB manufactures medical PCBs and PCBAs under an ISO 13485 quality management system and supports IPC Class 2 or Class 3 requirements according to project specifications.

2. Does MedPCB Provide Full Turnkey Medical Sterilizer PCB Assembly?

Yes. MedPCB provides full turnkey PCB and PCBA services, including PCB fabrication, component sourcing, SMT/THT assembly, inspection, and functional testing.

3. Is Standard FR-4 Suitable for Medical Sterilizer PCBs?

It depends on the operating conditions. For higher temperatures and repeated thermal cycles, high-Tg FR-4 or other suitable materials may provide better thermal stability.

4. What Is the Typical Service Life of a Medical Sterilizer PCB?

Service life depends on temperature, humidity, chemical exposure, thermal cycling, load, and operating frequency. Proper material selection and thermal design can support longer and more consistent PCB performance.

5. How Can You Reduce Medical Sterilizer PCB Costs While Maintaining Compliance?

MedPCB reviews the PCB design, materials, layer count, components, and assembly process during DFM/DFA. We can suggest suitable material and component alternatives while maintaining the required quality and compliance requirements.

6. Can MedPCB Assemble Relays, Connectors, and Power Components?

Yes. MedPCB supports SMT and through-hole assembly for relays, connectors, power devices, sensors, control ICs, and other components used in medical sterilizer PCBAs. Assembly can be configured for mixed-technology and high-power applications.
