Ventilator PCB Assembly

MedPCB provides precision PCB manufacturing and assembly for ventilator systems. We support HDI, high-frequency, and high-Tg PCB fabrication, fine-pitch SMT assembly, and reliable component sourcing for ventilator electronics.

✓ HDI, High-Frequency and High Tg PCB Manufacturing
✓ Placement Accuracy of ±0.035 mm & Fine-Pitch SMT Assembly
✓ Component Sourcing, Inspection, Traceability & Functional Testing
✓ ISO 13485 Manufacturing & IPC Class 2/3 Support

Get Instant Quote

Certifications

introduction

What is Ventilator PCB Assembly?

A ventilator is a medical device that helps patients who cannot breathe on their own. It delivers controlled air and oxygen while removing carbon dioxide from the lungs.

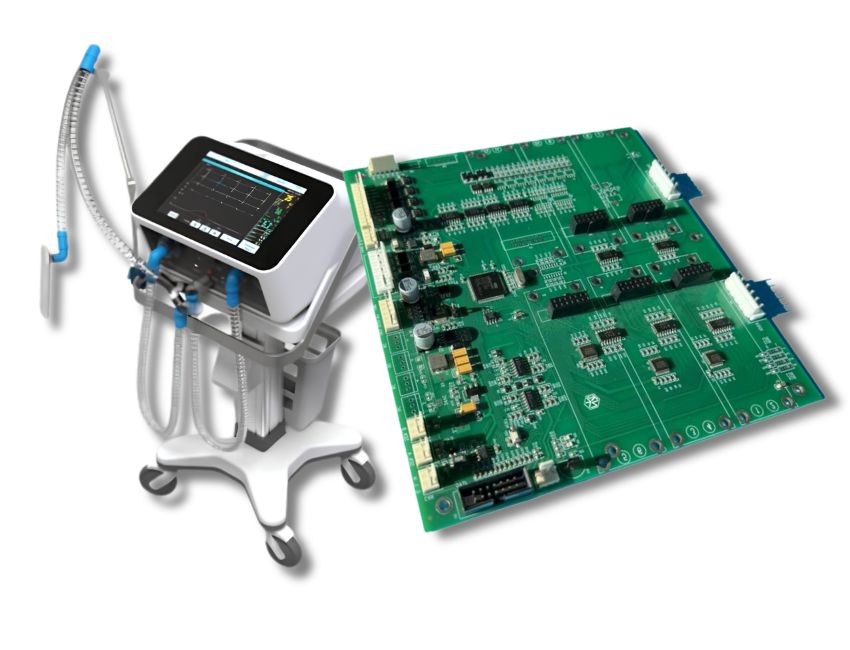

Ventilator PCB assemblies control and monitor key functions. These include airflow, pressure, oxygen levels, motor control, alarms, displays, and power management. Different ventilator subsystems can have different PCB requirements. Ventilator PCBs may require high-Tg materials, HDI, high-frequency circuits, and fine-pitch SMT assembly based on the system design.

MedPCB manufactures and assembles medical-grade ventilator PCBs. We provide PCB fabrication, precision SMT assembly, component sourcing, inspection, traceability, and functional testing for prototype, low-volume, and high-volume production.

Get Instant Quote

Products

Key Features of Ventilator PCB & PCBA

Sensor & Control Circuit Integration

Ventilator PCBAs can integrate pressure, airflow, oxygen, temperature, and other sensor interfaces with microcontrollers and control electronics. Compact multilayer PCB construction and consistent assembly support the integration of sensing and control functions within ventilator systems.

User Interface & Display

Power Supply Management

Support for Continuous Operation

Why Choose Us

Why Choose MedPCB for Ventilator PCB Manufacturing & Assembly?

ISO 13485 PCB & PCBA Manufacturing

MedPCB manufactures and assembles medical-grade PCBs under an ISO 13485 quality management system. We support controlled production, component traceability, inspection, and testing for ventilator electronics from prototypes to volume production.
Multilayer & Power PCB Manufacturing

MedPCB manufactures multilayer, high-Tg, and higher-copper PCB constructions according to customer-approved electrical, thermal, and fabrication requirements. HDI and controlled-impedance manufacturing are also available where required by the ventilator design.
Precision SMT & Mixed-Technology Assembly

MedPCB supports miniature and fine-pitch SMT together with through-hole and mixed-technology assembly. Automated placement supports accuracy up to ±0.035 mm according to our manufacturing capability.
Full, Partial & Consignment Turnkey Component Sourcing

MedPCB supports full turnkey, partial turnkey, and consignment PCBA. We source components from approved suppliers and provide inspection and traceability based on your requirements.
Free DFM / DFA Check

Our engineering team reviews the PCB layout, component placement, spacing, vias, materials, and assembly requirements before production. This helps identify manufacturing issues early and supports reliable ventilator PCBA production.
