What is Medical Prototype Assembly?

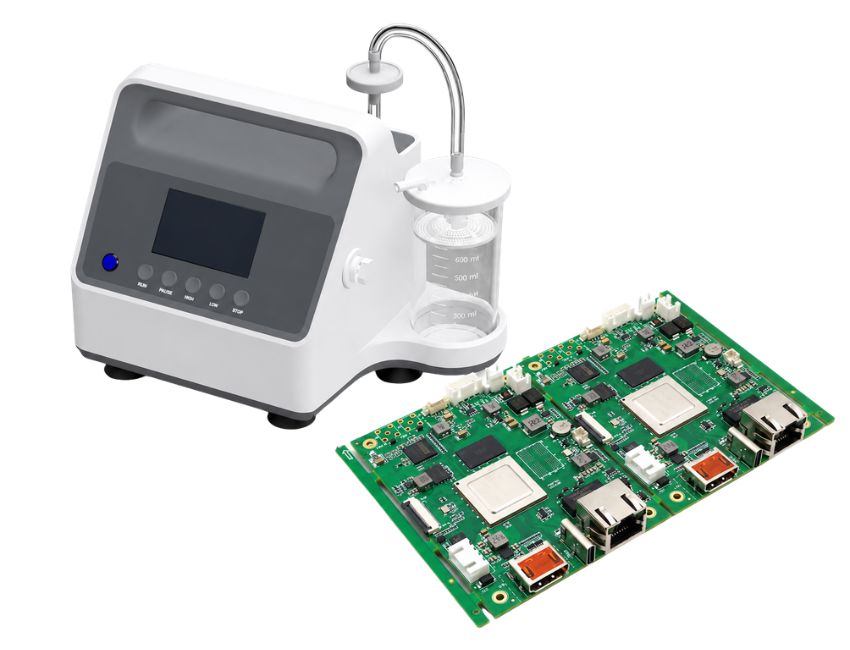

It is the process of building small quantities of printed circuit board assemblies for testing, validation, and product development. Before moving into mass production, medical device manufacturers use prototypes to verify functionality, evaluate performance, and identify potential design improvements. Prototype assemblies play a critical role in reducing development risks, accelerating product launches, and ensuring compliance with stringent healthcare industry requirements.
